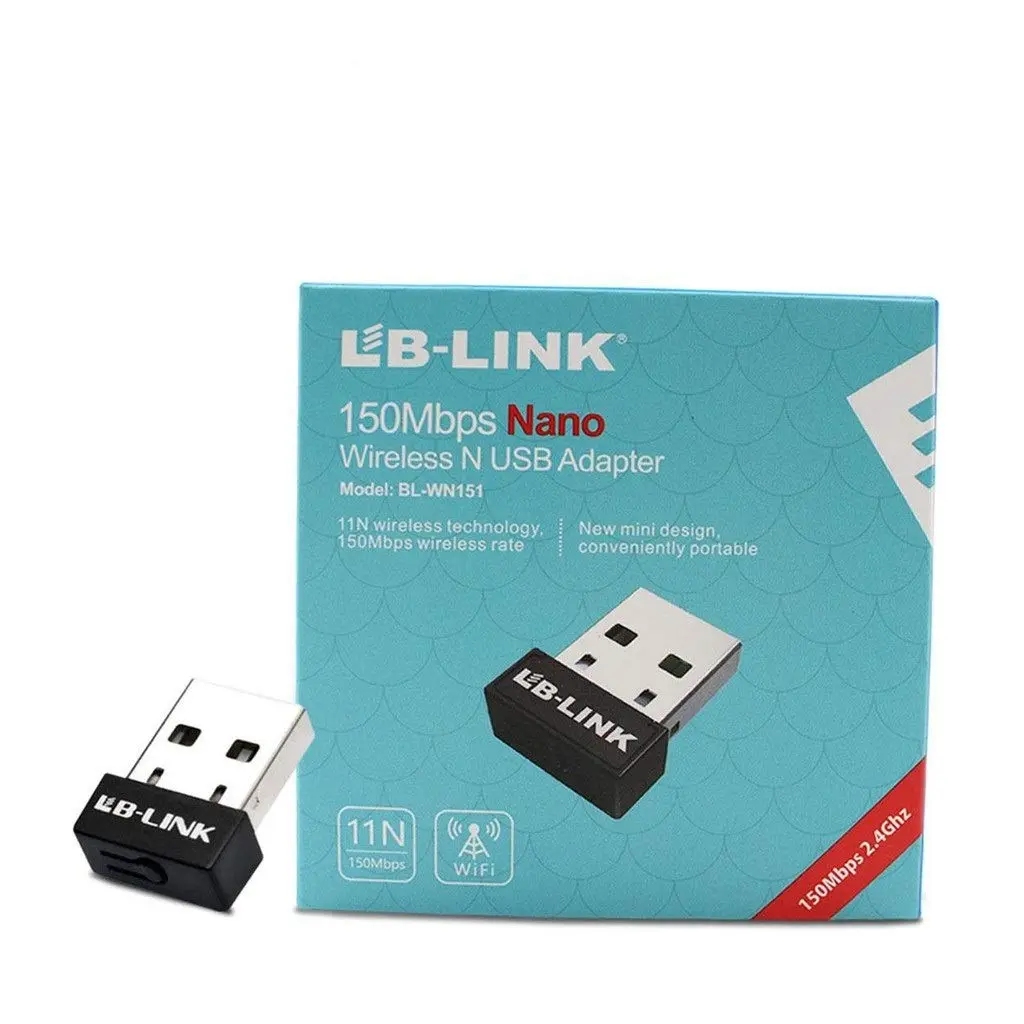

LB-Link BL-WN151 150 mbps Wireless Receiver

Standards

IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Interface

One USB 1.1 / 2.0 Port

Frequency Range

2.4-2.4835GHz

Channels

14

Modulations

OFDM/CCK/16-QAM/64-QAM

Receiver Sensitivity

(without Standard antenna)

135M: -72dBm@10% PER

108M: -72dBm@10% PER

54M: -72dBm@10% PER

11M: -85dBm@8% PER

6M: -88dBm@10% PER

1M:-90dBm@8% PER

Modes

Infrastructure, Ad-Hoc

Spread Spectrum Technology

(Direct Sequence Spread Spectrumï¼›DSSS)

Wireless Transmission Power

15dbm（MAX）

Wireless Range

Indoors up to 100 meters, outdoor up to 300 meters

Supported Operating Systems

Windows XP / Vista / Windows 7 / Windows 10

Environment

Operating Temperature: 0°C to 40°C (32°F to 104°F)

Storage Temperature: -40°C to 70°C (-40°F to 158°F)

Operating Humidity: 10% to 90% RH, Non-condensing

Storage Humidity: 5% to 90% RH, Non-condensing

Operating Voltage

DC 5V ±0.2V

Dimensions (LxWxH)

19.3x14.5x6.5 mm
