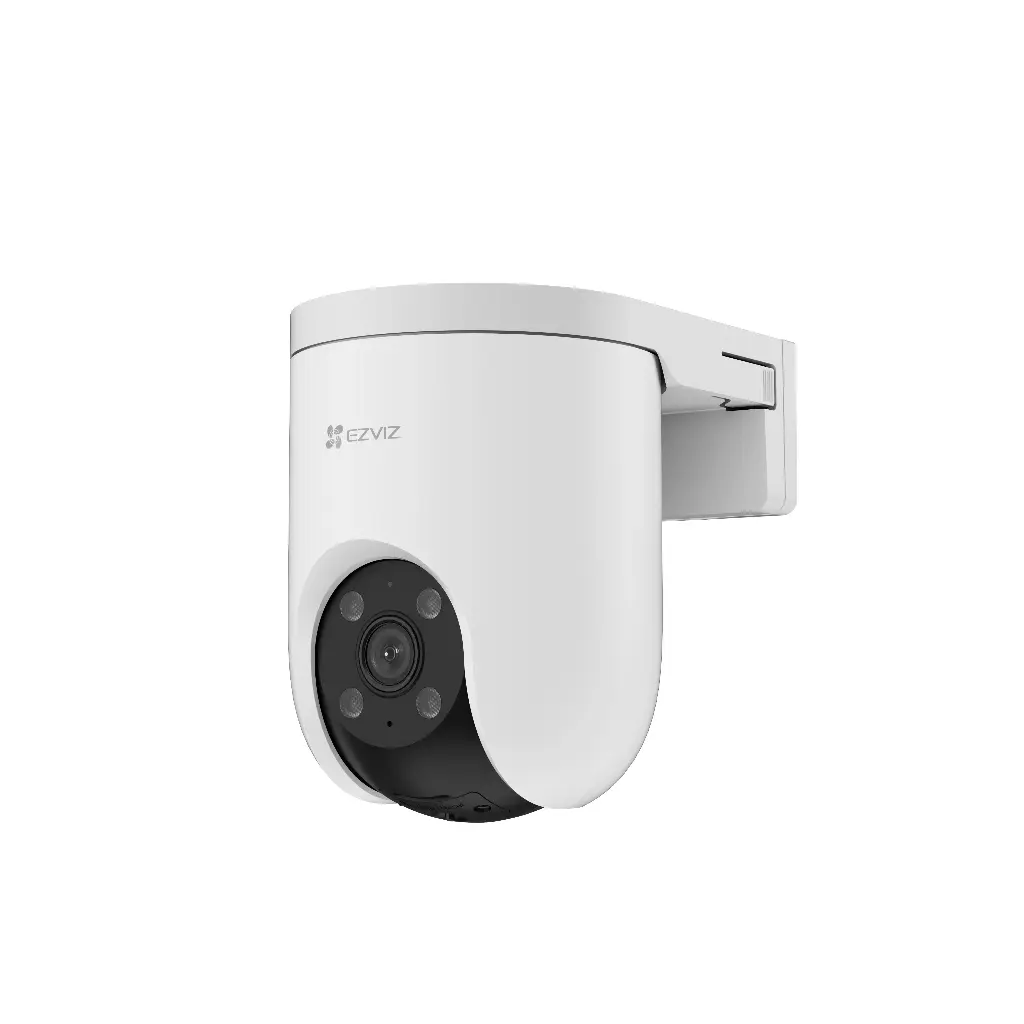

Ezviz H8C 4G Outdoor Wifi CCTV Camera

amera

Image Sensor 1/2.8″ Progressive Scan CMOS

Shutter Speed Self-adaptive shutter

Lens 4mm@ F1.6, viewing angle: 46° (Vertical), 86° (Horizontal), 102° (Diagonal) 6mm@ F1.6, viewing angle: 28° (Vertical), 52° (Horizontal), 62° (Diagonal)

PT Angle Pan: 350°, Tilt: 80°

Minimum Illumination 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories)

Lens Mount M12

DNR 3D DNR

WDR Digital WDR

Black & White Night 30m / 98ft

Video & Audio

Max Resolution 2304 × 1296

Frame Rate Max:30fps; Self-Adaptive during network transmission

Video Compression H.265 / H.264

H.265 Type Main Profile

Video Bit Rate Ultra-HD; Hi-Def; Standard. Adaptive bit rate.

Audio Bit Rate Self-Adaptive

Max. Bitrate 3 Mbps

Network

Frequency Bands IN LTE-FDD：B1/B3/B5/B8 IN LTE-TDD：B34/B38/B39/B40/B41 EU LTE-FDD：B1/B3/B5/B7/B8/B20/B28 LA LTE-FDD：B2/B3/B4/B5/B7/B8/B28/B66

Wired Network RJ45 × 1 (10M / 100M Adaptive Ethernet Port)

Functions

Smart Alarm Human Motion Detection, Vehicle Detection

Auto Tracking Supports

Customized Alert Area Supports

Two-way Talk Supports

Preset Locations Supports

General Function Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark

Storage

Local Storage Supports microSD Card (Up to 512 GB)

Cloud Storage Supports EZVIZ CloudPlay storage (Subscription required)

General

Operating Conditions -30°C to 50°C ( -22 °F to 122 °F ) Humidity 95% or less (non-condensing)

IP Grade Weatherproof Design

Power Supply DC 12V/1A

Dimensions 100 × 136 × 140mm (3.94 × 5.35 × 5.51 inch)

Packaging Dimensions 140 × 140 × 192mm (5.51 × 5.51 × 7.56 inch)

Weight Net Weight: 513.8 g (18.12 oz) With Package: 796.7 g (28.1 oz) For EU Standard Version

In the box

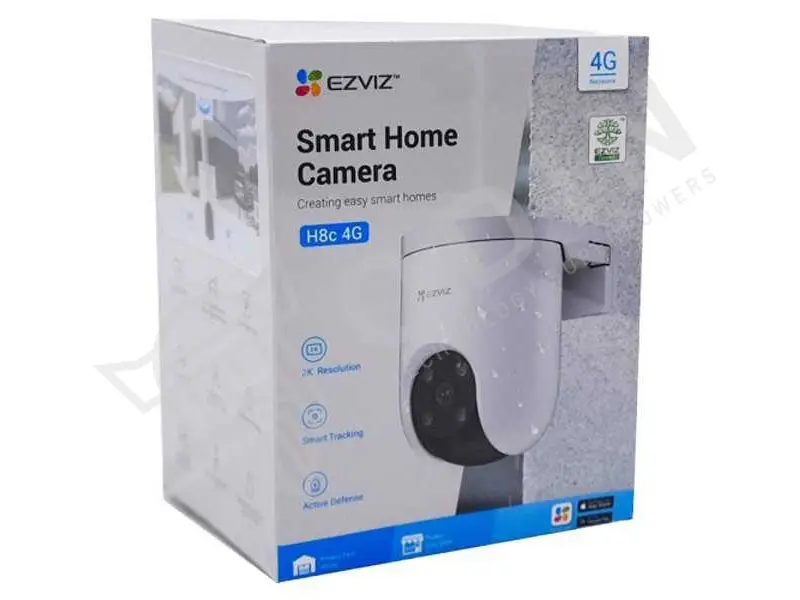

– H8c 4G Camera

– Drill Template

– Screw Kit

– Waterproof Kit

– Power Adapter

– Regulatory Information

– Quick Start Guide

Certifications

Certifications CE / WEEE / RoHS / REACH
