| Specifications |
|---|

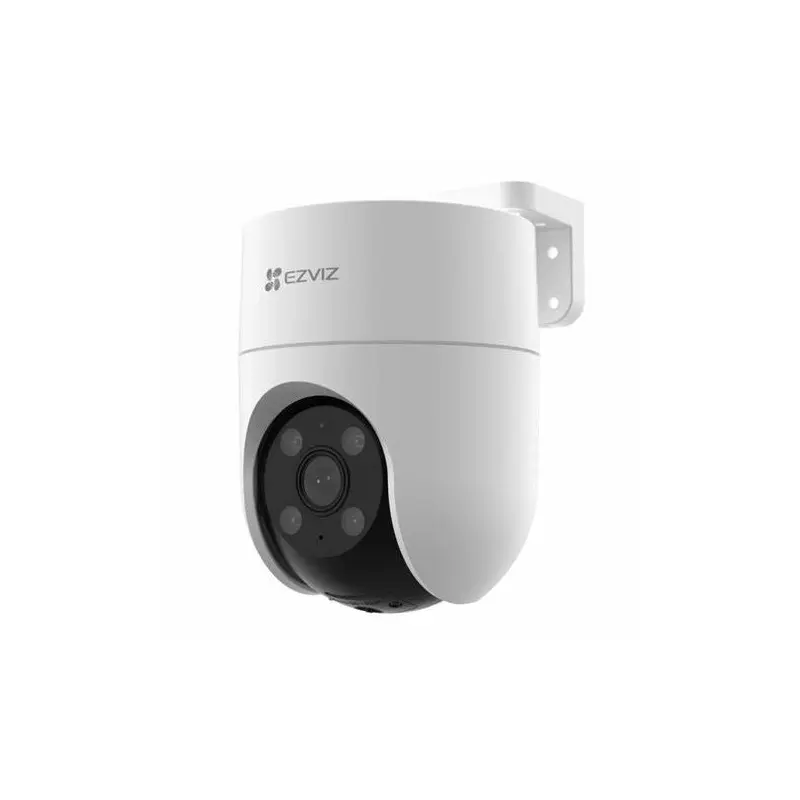

| Model | CS-H8c (2K) |
|---|
| Camera |
|---|
| Image Sensor | 1/2.8" Progressive Scan CMOS |
|---|
| Shutter Speed | Self-adaptive shutter |
|---|
| Lens | 4mm@ F1.6, viewing angle: 46° (Vertica), 89° (Horizontal), 104° (Diagonal) 6mm@ F1.6, viewing angle:28° (Vertica), 52° (Horizontal), 60° (Diagonal) |
|---|
| PT Angle | Pan: 350°, Tilt: 80° |
|---|
| Minimum Illumination | 0.5 Lux @ (F1.6, AGC ON), 0 Lux with IR (Data is obtained from EZVIZ laboratories) |
|---|
| Lens Mount | M12 |
|---|
| Day & Night | IR-Cut filter with auto-switching |
|---|
| DNR | 3D DNR |
|---|
| WDR | Digital WDR |
|---|
| Night Vision Distance | 30 m / 98 ft |
|---|
| Video & Audio |
|---|
| Max. Resolution | 2304 × 1296 |
|---|
| Frame Rate | Max: 30fps; Self-Adaptive during network transmission |
|---|
| Video Compression | H.265 / H.264 |
|---|
| H.265 Type | Main Profile |
|---|
| Video Bit Rate | Quad HD; Full HD; Hi-Def; Standard. Adaptive bit rate. |
|---|
| Audio Bit Rate | Self-Adaptive |
|---|
| Max. Bitrate | 3 Mbps |
|---|
| Network |
|---|
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
|---|
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
|---|
| Channel Bandwidth | Supports 20 MHz |
|---|
| Transmission Rate | 11b: 11 Mbps,11g: 54 Mbps,11n: 72 Mbps |
|---|
| Wi-Fi Pairing | AP pairing |
|---|
| Protocol | EZVIZ Cloud Proprietary Protocol |
|---|
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
|---|
| Wired Network | RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
|---|
| Storage |
|---|
| Local Storage | MicroSD card slot (Up to 512GB) |
|---|
| Cloud Storage | EZVIZ Cloud Storage (Subscription Required) |
|---|
| Function |
|---|
| Smart Alarm | AI-Powered Human Shape Detection |
|---|
| Customized Alert Area | Supports |
|---|
| Two-way Talk | Supports |
|---|
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
|---|
| Preset Locations | Supports |
|---|
| General |
|---|
| Operating Conditions | -30 °C to 50°C ( -22 °F to 122 °F ), humidity 95% or less (non-condensing) |
|---|
| IP Grade | Weatherproof Design |
|---|
| Power Supply | DC 12V / 1A |
|---|
| Power Consumption | MAX. 12W |
|---|
| Dimensions | 100.05 × 129.19 × 149.75 mm (3.94 × 5.09 × 5.9 inch) |
|---|
| Packaging Dimensions | 140 × 140 × 192 mm (5.51 × 5.51 × 7.56 inch) |
|---|
| Weight (With package) | 745 g (26.28 oz) For EU Standard Version |
|---|
| Net Weight | 435 g (15.34 oz) |
|---|
| In the box |
|---|
| In the box | - H8c 2K Camera |
|---|
| - Drill Template |
| - Screw Kit |
| - Waterproof Kit |
| - Power Adapter |
| - Regulatory Information |
| - Quick Start Guide |
